CIRCULAR MOVEMENT

ROTATING BRIDGE TP02

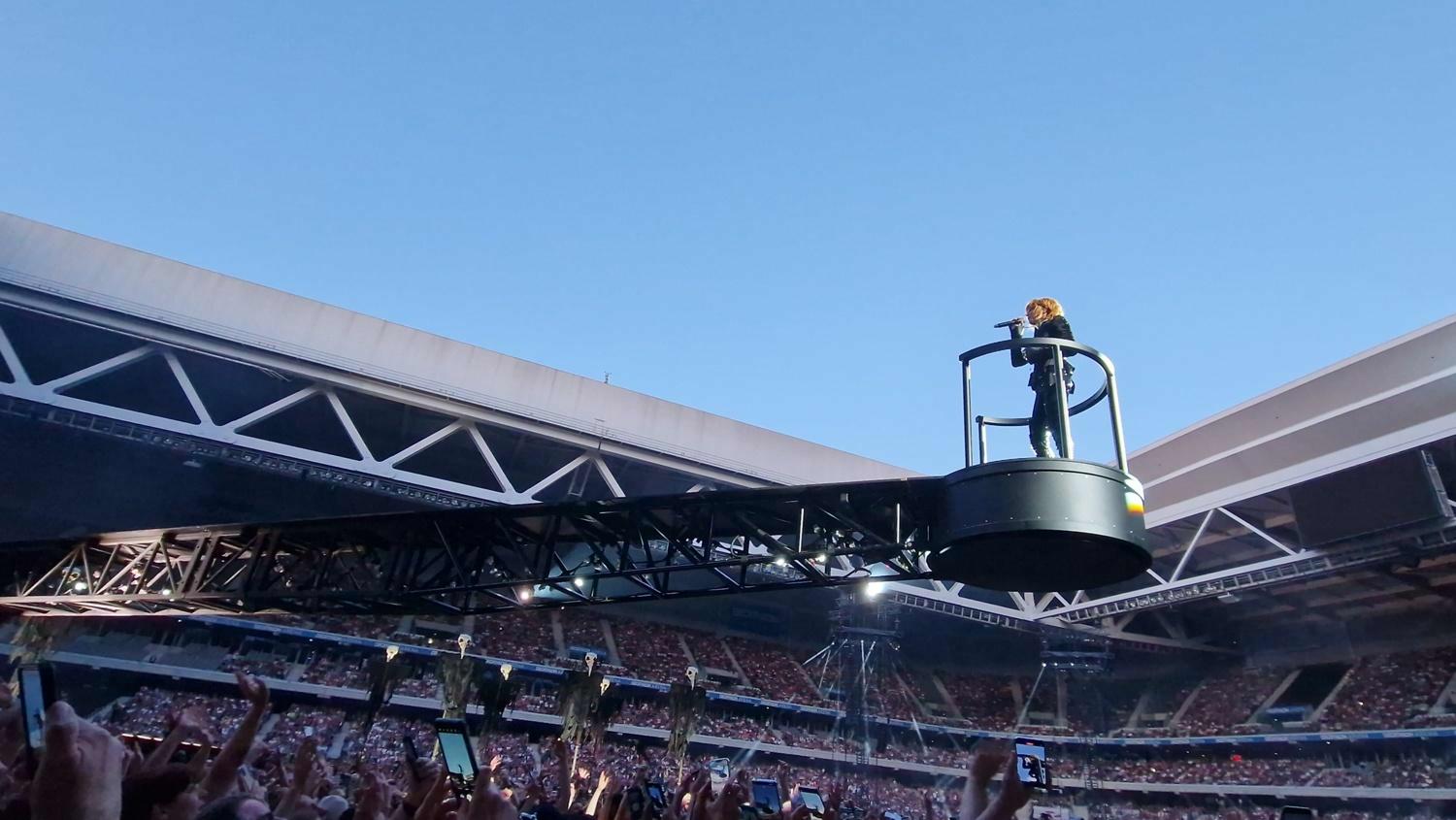

If you are looking for an original way to allow your artist to travel and connect with your audience, the rotating bridge might be what you are looking for. Built into stage level in resting position, the rotating bridge lifts to a maximum height of 4m and revolves around its base above your audience's heads at 1 m/sec at the platform.

This rotating bridge is specifically designed for touring productions which means a fast load-in, load-out and compact storage for transport.
The very solid structure is fully automated with hydraulics and controlled by WIMOTION software via a WIDESK.

ROTATING BRIDGE TP02

Technical details and 3D downloads available for experts and designers

Go to WIcommunity

Feel free to share with your network

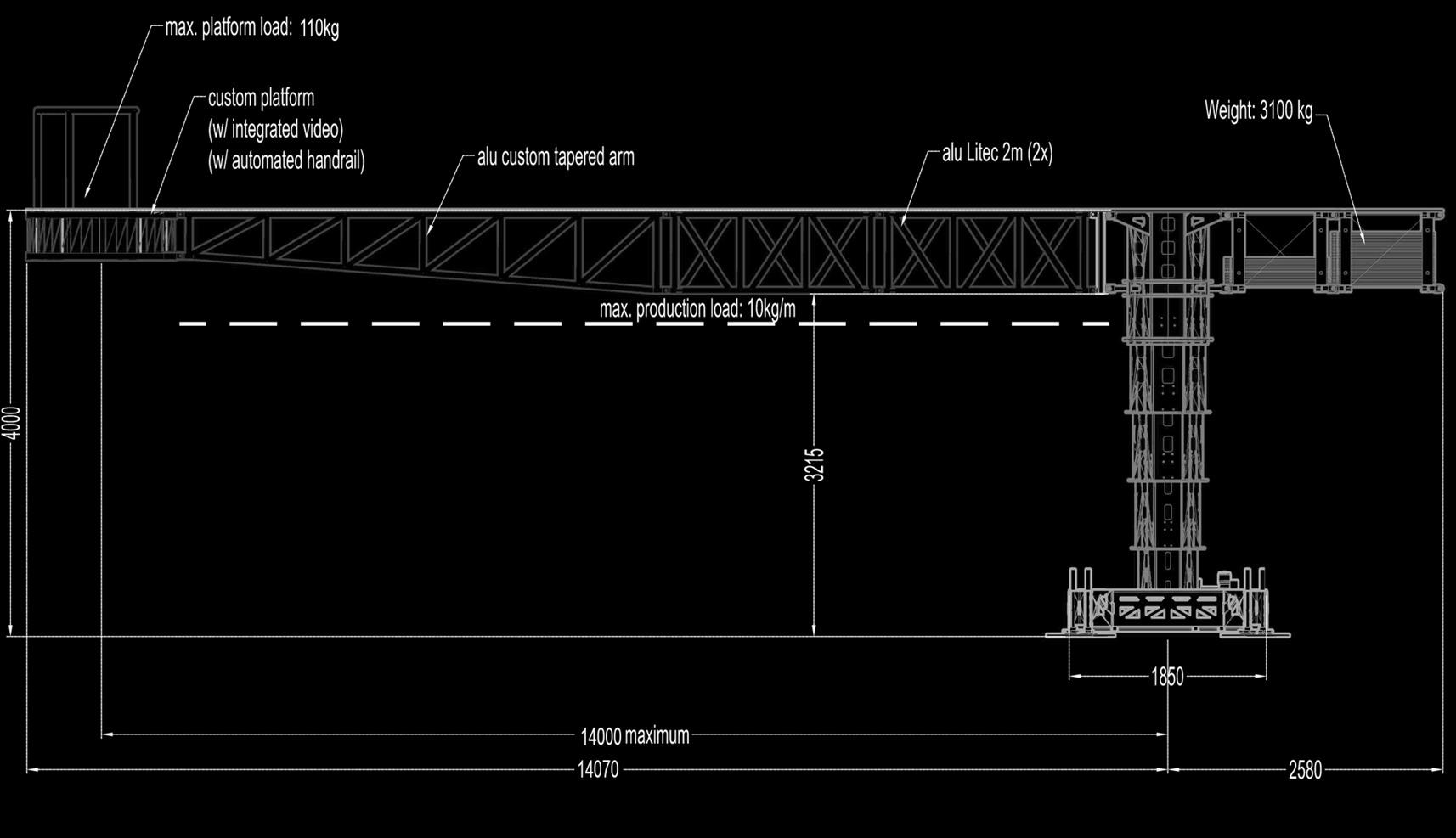

TECHNICAL SPECIFICATIONS

Total Weight 5700kg
Ground surface 4m2 (with a ground pressure of 1425 kg/m2)
Loads
Platform load
Max. total weight: 110kg (video included)
Weight optional video: 25kg => Max. additional load = 85kg (1 person)
Arm load
Max. 10kg/m
Speed
Lift speed
80 mm/s
Rotation speed
Max. 1 m/s at the platform.
