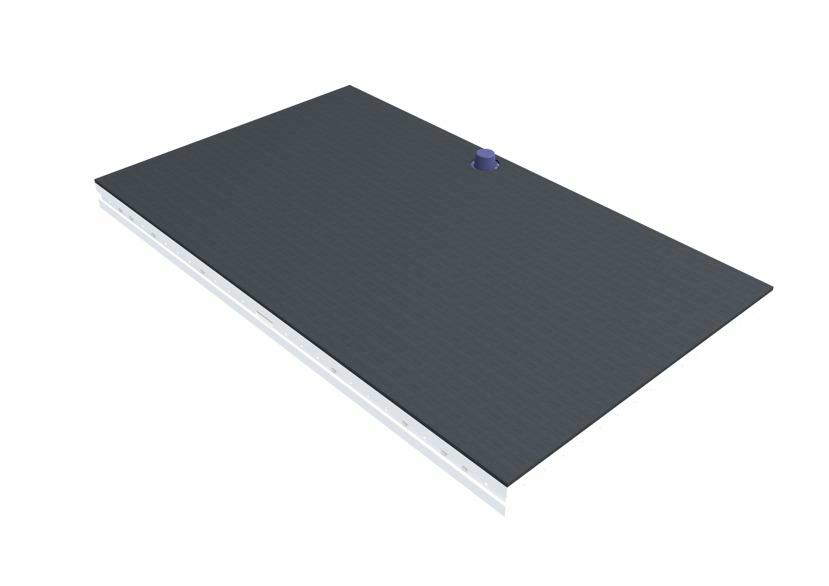

WIWAGON STANDARD

WI standard stage wagons or DUA 22 wagons are fabricated with a standard height of 191mm in which WI drive units are integrated. The special design of the units allows the drive wheels to rotate without damage to any floor, including canvas or dance floors.

Each stage wagon has a complete navigation system on board, allowing the user to create a virtually unlimited range of very smooth and swift movements. The most fascinating formations are possible within 1 wagon system of 16 wagons simultaneously in operation. Using a patented algorithm, wagons can move along curves, maintaining one face forward as they move or rotate and move forward simultaneously.

Wagons are built according to the following specifications:

• Full freedom of movement in 2 dimensions plus unlimited rotation
• Laser guided
• No cables, wires or other mechanical limitations
• Operation on most floor surfaces, including dance floors
• All components in a height of 200 mm
• User programming and operation from a single point
• Multiple operators and operating positions
• Up to 16 wagons in operation at any time
• Synchronization of any number of wagons
• Speeds of up to 1 m/s
• Position repeatability to less than 5 mm
• Reusable components

One wagon system consists of one or more control desks, one server and up to 16 wagons.

All components are modular and easily installed in the wagon framework. They can therefore be re-used in wagons of different shapes and sizes and be replaced very quickly for service.
