VERTICAL MOVEMENT

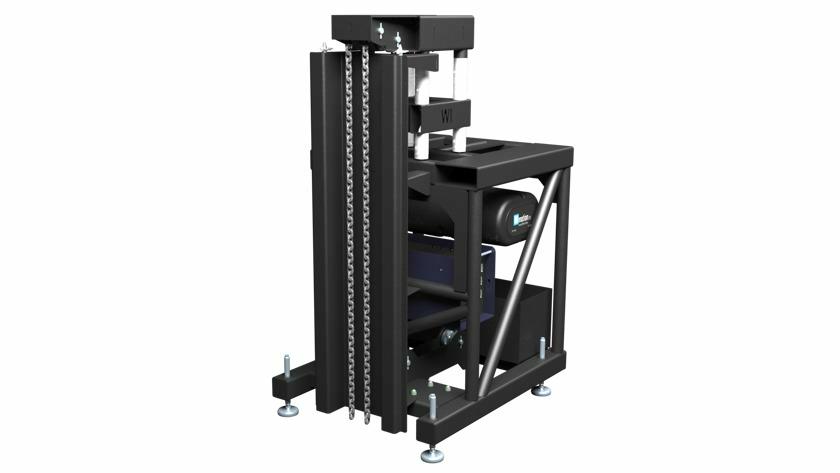

ELEVATOR TP03
The TP03 Lift is designed with a cutting-edge modular system, allowing for fully customized shapes to fit any project. Each leg is pre-assembled, ensuring rapid on-site assembly and disassembly, significantly reducing setup time. Thanks to its adjustable height, aligned with Litec QX30 trussing, this lift provides maximum flexibility for various configurations.
What sets the TP03 apart is its zero height loss—the lifting height is exactly equal to the total height. This ensures smooth movements at every position without compromising on stability. Additionally, the load capacity remains constant throughout the entire elevation range. Built for versatility, the TP03 can be seamlessly integrated into any scaffold structure, making it the ultimate solution for professional lifting applications.
Downloads
Technical details and 3D downloads available for experts and designers
Go to WIcommunityMAIN FEATURES
| COMPACT DESIGN | RELIABLE |
| HIGH PRECISION | SIMPLE OPERATION |
| STURDY | EASY TO INSTALL |
- Chain Elevator
- Modular
- Height = Lifting Height
- All shapes and sizes possible
- Integrated in our WIMOTION platform
- Compatible with any other motion control gear from our rental stock
- Can be handled with a forklift
- Fast assembly / disassembly
- Operation with remote controller or control panel
- Locally or via show control
- Preset and recall of any configuration
- Perfect sync with video, light, sound and whatever motion controlled scenic objects or effects
- Quiet operation that won’t hinder activities
- Compliant with all safety regulations
- Safety procedures explained and documented for parties involved
- Tourable
TECHNICAL SPECIFICATIONS
Load, speed and height depend on the chain hoist used in the setup.
| MAX load | 500 or 1000 kg/leg |
| MAX speed | 250 or 500 mm/s |
| MAX height | Standard 15 m |
The elevator can go higher depending on the chain length.
DIMENSIONS
