VERTICAL MOVEMENT

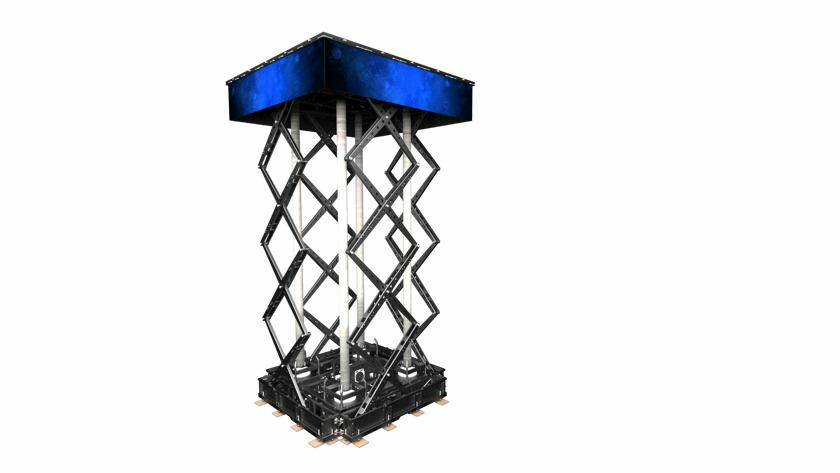

ELEVATOR SP12
The SP12 elevator consists of 4 integrated scissor packages (spiralifts) for unmatched flexibility and performance, making it a standout choice for high-profile productions.
The SP 12 Integrates in our WIMOTION platform and can be controlled locally or via show control. Multiple units can be linked to the same control system and can be fully synchronized.
This advanced technology is in high demand for all kinds of productions that have invested in high-impact stage effects to boost live experiences. Theaters around the world are clients but also corporate events such as car reveals and shiny floor TV shows have already used the SP12.
Downloads
Technical details and 3D downloads available for experts and designers
Go to WIcommunityMAIN FEATURES
| COMPACT DESIGN | ADAPTABLE / ALL SHAPES POSSIBLE |
| RELIABLE | MINIMAL MAINTENANCE |
| STURDY | CONTROLLABLE WITH MM PRECISION |
| EASY TO INSTALL | TOURABLE AND STACKABLE |
- Scissor / Spira Elevator
- Visible during show, so good looking design
- Possible to add video on the sides
- Integrated in our WIMOTION platform
- Compatible with any other motion control gear from our rental stock
- Can be handled with a forklift
- Fast assembly / disassembly
- Operation with remote controller or control panel
- Locally or via show control
- Preset and recall of any configuration
- Perfect sync with video, light, sound and whatever motion controlled scenic objects or effects
- Quiet operation that won’t hinder activities
- Compliant with all safety regulations
- Safety procedures explained and documented for parties involved
- Tourable
Every set-up is calculated and simulated into detail before any show is programmed.
TECHNICAL SPECIFICATIONS
- With an own weight of 1,75t/unit the elevator can be handled with a forklift.
- With a max. load of 7t the travel distance is 8m.
- Moveble capacity: ELL: capacity 250 kg/m2 (or a total off 7t for 25m2 floor)
- Equipped with servo motors and all safety systems (SIL3), Lower Stage Machinery, Use Case UCLS-L
- High stability, very limited horizontal movements at height, allowing the lift to lower accurately and without additional guidance through stage openings or move past other (delicate) objects.
- Can be perfectly combined and synchronized with video content. (By using servo motors)
DIMENSIONS
